Blacole's shell code

Published: 2012-04-25. Last Updated: 2012-04-25 20:41:35 UTC
by Daniel Wesemann (Version: 1)

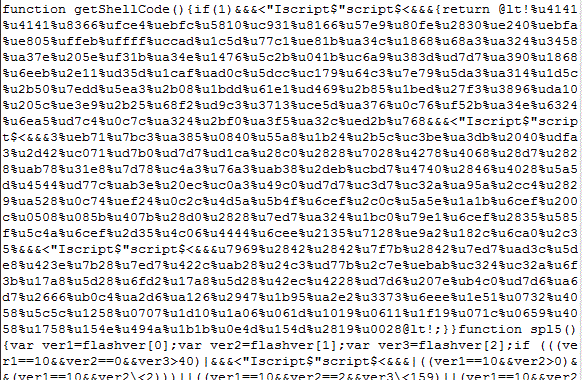

Let's assume you finished the analysis of Blacole's obfuscated Javascript (see my earlier diary today), and you are still left with a code block like this

and you wonder what it does. The first step in Shell Code analysis is to "clean it up", in the case at hand here, we have to remove those spurious "script" tags

because they would trip us up in any of the following steps.

Once we're left with only the actual unicode (%uxxyy...) , we can turn this into printable characters:

$ cat raw.js | perl -pe 's/%u(..)(..)/chr(hex($2)).chr(hex($1))/ge' > decoded.bin
$ cat decoded.bin | hexdump -C

This doesn't result in anything all that useful yet. Shellcode is in assembly language, so it wouldn't be "readable" in a hex dump anyway. But since most shellcode just downloads and runs an executable .. well, the name of the EXE could have been visible. Not in this case, because the shellcode is .. encoded one more time :).

Next step: Disassemble.

The quickest way to do so from a Unix command line (that I'm aware of) is to wrap the shell code into a small C program, compile it, and then disassemble it:

$ cat decoded.bin | perl -ne 's/(.)/printf "0x%02x,",ord($1)/ge > decoded.c

results in

0x41,0x41,0x41,0x41,0x66,0x83,0xe4,0xfc,0xfc,0xeb,0x10,0x58,0x31,0xc9 [...]

which is the correct format to turn it into

$ cat decoded.c

unsigned char shellcode[] = {
0x41,0x41,0x41,0x41,0x66,0x83,0xe4,0xfc, [...] }

int main() { }

which in turn can be compiled:

$ gcc -O0 -fno-inline decoded.c -o decoded.obj

which in turn can be disassembled:

$ objdump -M intel,i386 -D decoded.obj > decoded.asm

and we are left with a file "decoded.asm". This file will contain all the glue logic that this program needs to run on Unix .. but we're not interested in that. The only thing we're after is the disassembled contents of the array "shellcode":

0000000000600840 <shellcode>:
600840: 41 inc ecx
600841: 41 inc ecx
600842: 41 inc ecx
600843: 41 inc ecx
600844: 66 83 e4 fc and sp,0xfffffffc
600848: fc cld
600849: eb 10 jmp 60085b <shellcode+0x1b>
60084b: 58 pop eax
60084c: 31 c9 xor ecx,ecx
60084e: 66 81 e9 57 fe sub cx,0xfe57
600853: 80 30 28 xor BYTE PTR [eax],0x28
600856: 40 inc eax
600857: e2 fa loop 600853 <shellcode+0x13>
600859: eb 05 jmp 600860 <shellcode+0x20>
60085b: e8 eb ff ff ff call 60084b <shellcode+0xb>
600860: ad lods eax,DWORD PTR ds:[esi]
600861: cc int3
600862: 5d pop ebp
[...]

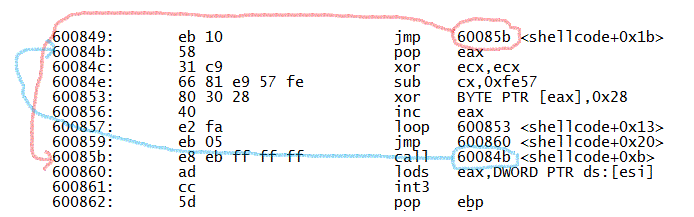

A-Ha! Somebody is XOR-ing something here with 0x28 (line 600853). If we look at this in a bit more detail, we notice an "odd" combination of JMP and CALL.

Why would the code JMP to an address only to CALL back to the address that's right behind the original JMP ? Well .. The shell code has no idea where it resides in memory when it runs, and in order to XOR-decode the remainder of the shellcode, it has to determine its current address. A "CALL" is a function call, and pushes a return address onto the CPU stack. Thus, after the "call 60085b" instruction, the stack will contain 600860 as the return address. The instruction at 60084b then "pops" this address from the stack, which means that register EAX now points to 600860 .. and xor [eax], 0x28 / inc eax then cycle over the shellcode, and XOR every byte with 0x28.

Let's try the same in Perl:

$ cat decoded.bin | perl -pe 's/(.)/chr(ord($1)^0x28)/ge' > de-xored.bin

$ hexdump -C de-xored.bin | tail -5

If you want to reproduce this analysis, you can find the original (raw.js) shellcode file on Pastebin.

Keywords: blocklist malware shellcode

0 comment(s)

Microsoft Security Intelligence Report (SIR) Volume #12: http://www.microsoft.com/sir

Blacole's obfuscated JavaScript

Published: 2012-04-25. Last Updated: 2012-04-25 11:44:21 UTC
by Daniel Wesemann (Version: 1)

3 comment(s)

Looking back on how we used to analyze malicious JavaScript five years ago, it is quite amazing to see the "evolution" of code obfuscation that the bad guys went through.

Most of the current obfuscation methods make heavy use of objects and functions that are only present in the web browser or Adobe reader. Since it is unlikely that a JavaScript analysis engine on, for example, a web proxy anti-virus solution can duplicate the entire object model of Internet Explorer, the bad guys are hoping that automated analysis will fail, and their JavaScript will make it past the virus defenses to the user's browser, where it will run just fine.

Often, this actually works. The current wave of Blackhole (Blacole) exploit kits are a good example - it took Anti-Virus a looong time to catch on to these infected web sites. Even today, the raw malicious JavaScript block full of exploit attempts comes back with only 14/41 on Virustotal

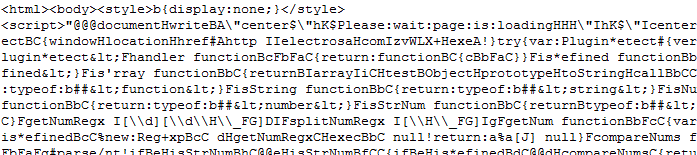

Here's what the Blacole obfuscated Javascript looks like:

Unlike "older" obfuscation methods, this "Blacole" encoding is almost human readable again. But automated analysis still has a tough time with it, because the code is heavy on browser objects and function prototypes:

None of this will run in command line JavaScript interpreters like "SpiderMonkey". Analysis environments like Cuckoo and Wepawet are doing a pretty good job at this, but often also trip up.

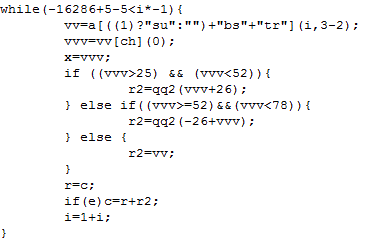

If all else fails, while manual analysis of the code is tedious, it usually leads to the desired result. A bit further down in the JavaScript block, we find

This looks like a loop over the code block that replaces/transposes characters based on their ASCII code. If the ASCII Code is >25 and <52, 26 gets added to it. If it is >=52 and <78, 26 gets subtracted. Otherwise, the ASCII code remains unchanged. This is like a "poor man's Caesar Cipher", swapping out one letter against another.

Something we can readily reproduce in a couple lines of Perl :)

$cat decode.pl
#!/usr/bin/perl -w
while (<>) {
for ($i=0; $i<length($_); $i++) {
$c=substr($_,$i,1);
$o=ord($c);
if (($o>25) && ($o<52)) {
$k=$o+26;
} elsif (($o>=52) && ($o<78)) {
$k=$o-26;
} else { $k=$o };
print chr($k);
}
}

And, lo and behold:

$cat malscript.js | ./decode.pl

The decoding is not yet complete (there are a couple more steps in this obfuscation), but the name and location of one of the EXEs is already apparent.

Thanks to ISC reader Jan for the sample.

Keywords: blocklist JavaScript malware

3 comment(s)
